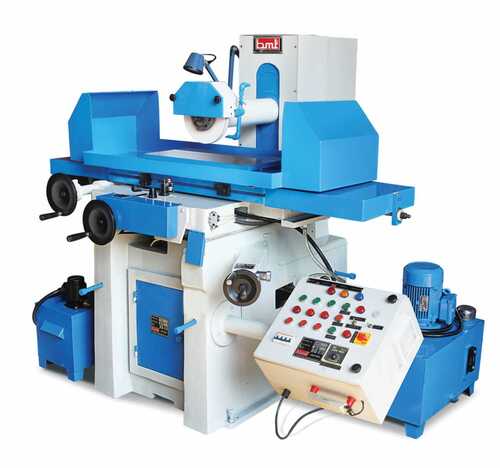

Industrial Surface Grinder Machine
Industrial Surface Grinder Machine Industrial Surface Grinder Machine Industrial Surface Grinder Machine Industrial Surface Grinder Machine Industrial Surface Grinder Machine
Industrial Surface Grinder Machine Industrial Surface Grinder Machine Industrial Surface Grinder Machine Industrial Surface Grinder Machine Industrial Surface Grinder Machine Industrial Surface Grinder Machine

Industrial Surface Grinder Machine

Product Details:

  • Product Type Surface Grinder
  • General Use GRINDING PURPOSE
  • Material Cast Iron
  • Capacity 500 Kg/day
  • Weight (kg) 1800 Kilograms (kg)
  • Computerized No
  • Automatic Yes
  • Click to View more
X

Industrial Surface Grinder Machine Price And Quantity

  • 1 Number

Industrial Surface Grinder Machine Product Specifications

  • Yes
  • 220-440 Volt (v)
  • 600X300
  • 1.5 Horsepower (HP)
  • 300 x 600 mm
  • Green
  • 600 mm
  • Surface Grinder
  • 1800 RPM
  • 600x300 mm
  • No
  • Lower Energy Consumption ECO Friendly High Efficiency Low Noise High Performance
  • 200x20x31.75 mm
  • Normal
  • 2286 x 1828.8 x 1828.8 Millimeter (mm)
  • 75 Liter (L)
  • Manual
  • Cast Iron
  • 90x60x72
  • 1800 RPM
  • GRINDING PURPOSE
  • 500 Kg/day
  • 1800 Kilograms (kg)

Industrial Surface Grinder Machine Trade Information

  • 20 Number Per Month
  • 1 Week
  • No
  • WOODEN PACKING
  • Asia Australia North America South America Eastern Europe Western Europe Middle East Central America Africa
  • All India
  • GST ISO EDYOG ADHAR

Product Description

We hold prominence as manufacturers of superb quality Hydraulic Surface Grinder, which is available in various dimensions and shapes.

Technical Specifications

MODELS

AH-630

Working Surface of Table

600 x300

Max. Table Travel

625 x 310

Magnet Chuck Suitable

300 x 600

Max. Distance Center of Spindle to table

400

Vertical Down Feed on Hand Wheel

0.01

Micro feed (Elevation)

0.002 / 1 Div.

Wheel Speed

1800 RPM

Wheel Dimension Grinding

200x19x31.75

Spindle Motor 3 Phase

1.5 HP

Table Speed

5 - 25 m/min

Auto Cross Feed Increment

0.3 - 5.0 mm

Cross Feed on Hand Wheel

0.05mm = 1 Gra - 5.00mm / 1 Rev.

Hydraulic Pump Motor

1.5 HP

Hydraulic Tank Capacity

75 Ltr.



Features

  • HYDRAULIC MACHINE - is equipped with Imported seals, hard chrome plated rod and honned cylinder.
  • POWER PACK Equipped with relief value, pressure gauge, suction and return line filters, U.K. collaborated hydraulic pump and works on low pressure. It is situated outside the machine body for better cooling. Machine is provided with stock adjustment stoppers.
  • The Magnet slide is automatically lubricated through power pack.
  • All hydraulic connections are connected by Imported copper pipes, leak proof hydraulic fittings and Gates /Markwel hydraulic hose pipes.
  • After completion of the job, the machine stops automatically
  • Superior Quality, Accuracy and Prompt deliveries have gained us Reputation.
