Surface Grinder Column Movement

Get a Price/Quote

Product Details:

Product Type Surface Grinder
General Use DIE & FIXTURE GRINDING PURPOSE
Material Cast Iron
Capacity 500 Kg/day
Weight (kg) 2000 Kilograms (kg)
Computerized No
Automatic Yes
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

Surface Grinder Column Movement Price And Quantity

Minimum Order Quantity 1 Unit

Surface Grinder Column Movement Product Specifications

WorkingSpeed 1000X300
Feature Lower Energy Consumption ECO Friendly High Performance High Efficiency
Computerized No
Grinding Wheel Speed 1400 RPM
Magnetic Chuck Size 300 X900 MM
General Use DIE & FIXTURE GRINDING PURPOSE
Power 3 Horsepower (HP)
Table Size 1000X300
Automatic Yes
Dimension (L*W*H) 3352.8 x 2032 x 1828.8 Millimeter (mm)
Weight (kg) 2000 Kilograms (kg)
Voltage 220-420 Volt (v)
Fuel Tank Capacity 75 Liter (L)
Spindle Speed 1400 RPM
Floor Space 150X78X72
Material Cast Iron
Grinding Wheel Size 300X20X76.2 MM
Product Type Surface Grinder
Color Black
Control System Manual
Warranty ONE YEAR
Capacity 500 Kg/day
CNC Or Not Normal
Grinding Length 1000 MM

Surface Grinder Column Movement Trade Information

Payment Terms Cash in Advance (CID) Cheque Cash Advance (CA)
Supply Ability 2 Unit Per Month
Delivery Time 1 Week
Packaging Details wooden packing
Main Export Market(s) Western Europe Asia South America Middle East Central America Eastern Europe North America Australia Africa
Main Domestic Market All India
Certifications GST CERTIFICATE , ISO , MSME UDYOG AADHAR

Product Description

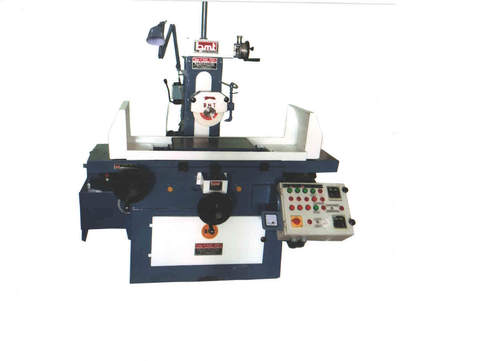

Column Movement Type Surface Grinder

Three Independent axis machine. Column Machine having independent axis.

Specification

MODELS	AH-1000
Working Surface of Table	1000 x 300
Max. Table Travel	1000 x 300
Magnet Chuck Suitable	900 x 300`
Max. Distance Center of Spindle to table	465
Vertical Down Feed on Hand Wheel	0.01
Micro feed (Elevation)	0.002 / 1 Div.
Wheel Speed	1400 RPM
Wheel Dimension Grinding	300x20x31.75
Spindle Motor 3 Phase	3 HP
Table Speed	8 - 15 m/min
Auto Cross Feed Increment	0.1 - 2.5 mm
Cross Feed on Hand Wheel	0.05mm = 1 Gra - 5.00mm / 1 Rev.
Hydraulic Pump Motor	2 HP
Hydraulic Tank Capacity	75 Ltr.
