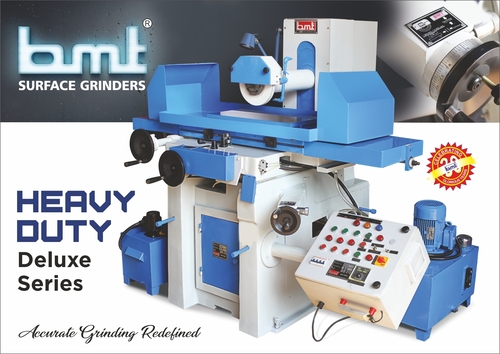

Owing to the huge demand of our prestigious clients, we manufacture, supply and export Industrial Surface Grinding Machines. These products are used in industries for processing varied types of metals. Known for their high strength and durability, these products have earned the praise of the clients. In order to ensure their delay free performance, these products are checked by our team of qualified quality controllers. Industrial Surface Grinding Machines are delivered to the clients in a committed time frame owing to our expert logistics team.
Technical Specifications:
MODELS |
AH-7540 |
Working Surface of Table |
750 x 400 |
Max. Table Travel |
760 x 410 |
Magnet Chuck Suitable |
300 x 750 |
Max. Distance Center of Spindle to table |
465 |
Vertical Down Feed on Hand Wheel |
0.01 |
Micro feed (Elevation) |
0.002 / 1 Div. |
Wheel Speed |
1400 RPM |
Wheel Dimension Grinding |
250x25x 6.2 |
Spindle Motor 3 Phase |
3 HP |
Table Speed |
5 - 25 m/min |
Auto Cross Feed Increment |
0.2 - 2.5 mm |
Cross Feed on Hand Wheel |
0.05mm = 1 Gra - 5.00mm / 1 Rev. |
Hydraulic Pump Motor |
2 HP |
Hydraulic Tank Capacity |
75 Ltr. |
Floor Area Capacity |
132" x 80" x 72" |
Packing Size ( LxBxH ) in Inches |
100" x 64" x 74" |
