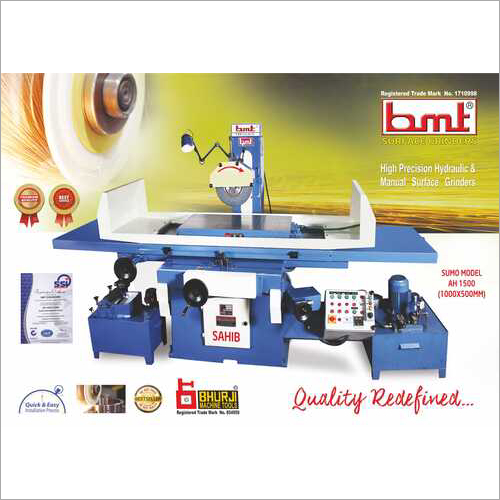

Speicial Purpose Surface Grinder
Speicial Purpose Surface Grinder Speicial Purpose Surface Grinder Speicial Purpose Surface Grinder Speicial Purpose Surface Grinder Speicial Purpose Surface Grinder
Speicial Purpose Surface Grinder Speicial Purpose Surface Grinder Speicial Purpose Surface Grinder Speicial Purpose Surface Grinder Speicial Purpose Surface Grinder Speicial Purpose Surface Grinder

Speicial Purpose Surface Grinder

Product Details:

  • Product Type Surface Grinder
  • General Use GRINDING PURPOSE
  • Material Cast Iron
  • Capacity 80 Liter/day
  • Weight (kg) 2800 Kilograms (kg)
  • Computerized No
  • Automatic Yes
  • Click to View more
X

Speicial Purpose Surface Grinder Price And Quantity

  • 1 Unit

Speicial Purpose Surface Grinder Product Specifications

  • 1400 RPM
  • 1000X500 MM
  • Surface Grinder
  • Lower Energy Consumption ECO Friendly High Efficiency High Performance
  • ONE YEAR
  • 1000 MM
  • No
  • 150X78X72
  • 300X40X76.2 MM
  • Yes
  • 80 Liter/day
  • 1000X500
  • Normal
  • HYDRAULIC OIL 80 Liter (L)
  • 1400 RPM
  • GRINDING PURPOSE
  • 2800 Kilograms (kg)
  • Blue
  • Cast Iron
  • 3352.8 x 2032 x 1828.8 Millimeter (mm)
  • 3 Horsepower (HP)
  • 1000X500
  • 420-220 Volt (v)

Speicial Purpose Surface Grinder Trade Information

  • Cash in Advance (CID) Cheque Cash Advance (CA)
  • 20 Unit Per Month
  • 1 Months
  • Yes
  • wooden packing
  • Western Europe Australia Eastern Europe Middle East Central America South America Asia North America Africa
  • All India
  • ISO GST MSME UDYOG AADHAR

Product Description

Aided by innovative technology and modern equipment, we are able to manufacture and export Special Purpose Grinding Machine. These products are used in different construction operations for grinding jobs. With better workability and effective functioning, these products have become very popular in the global market. Our clients appreciate these products for their delay free service and performance. Special Purpose Grinding Machine is delivered to the clients in a designated time duration owing to our extensive distribution system.



MODELS

AH-1500

Working Surface of Table

1000x500

Max. Table Travel

1000x 500

Magnet Chuck Suitable

1000 x 500

Max. Distance Center of Spindle to table

465

Vertical Down Feed on Hand Wheel

0.01

Micro feed (Elevation)

0.002 / 1 Div.

Wheel Speed

1400 RPM

Wheel Dimension Grinding

300x40x76.2

Spindle Motor 3 Phase

3 HP

Table Speed

5 - 15 m/min

Auto Cross Feed Increment

0.3 - 5.0 mm

Cross Feed on Hand Wheel

0.05mm = 1 Gra - 5.00mm / 1 Rev.

Hydraulic Pump Motor

2HP

Hydraulic Tank Capacity

80 Ltr.

Features

  • HYDRAULIC MACHINE - is equipped with Imported seals, hard chrome plated rod and honned cylinder.
  • POWER PACK Equipped with relief value, pressure gauge, suction and return line filters, U.K. collaborated hydraulic pump and works on low pressure. It is situated outside the machine body for better cooling. Machine is provided with stock adjustment stoppers.
  • The Magnet slide is automatically lubricated through power pack.
  • All hydraulic connections are connected by Imported copper pipes, leak proof hydraulic fittings and Gates /Markwel hydraulic hose pipes.
  • After completion of the job, the machine stops automatically
  • Superior Quality, Accuracy and Prompt deliveries have gained us Reputation.
