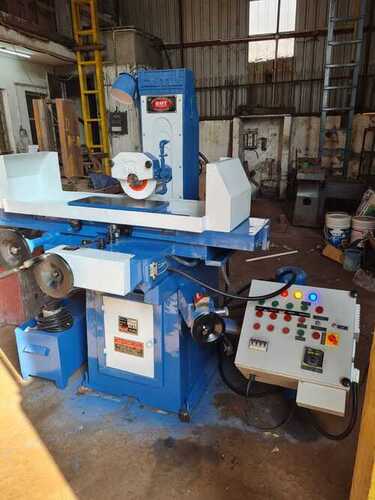

Speicial Purpose Surface Grinder

Speicial Purpose Surface Grinder Specification

Product Type
Surface Grinder

General Use
GRINDING PURPOSE

Material
Cast Iron

Capacity
80 Liter/day

Weight (kg)
2800 Kilograms (kg)

Computerized
No

Automatic
Yes

CNC Or Not
Normal

Table Size
1000X500 MM

Magnetic Chuck Size
1000X500

Grinding Wheel Size
300X40X76.2 MM

Grinding Wheel Speed
1400 RPM

Grinding Length
1000 MM

Floor Space
150X78X72

Fuel Tank Capacity
HYDRAULIC OIL 80 Liter (L)

WorkingSpeed
1000X500

Spindle Speed
1400 RPM

Power
3 Horsepower (HP)

Voltage
420-220 Volt (v)

Dimension (L*W*H)
3352.8 x 2032 x 1828.8 Millimeter (mm)

Color
Blue

Warranty
ONE YEAR

Speicial Purpose Surface Grinder Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID), Cheque, Cash Advance (CA)

Supply Ability
20 Units Per Month

Delivery Time
1 Months

Sample Available
Yes

Packaging Details
wooden packing

Main Export Market(s)
Western Europe, Australia, Eastern Europe, Middle East, Central America, South America, Asia, North America, Africa

Main Domestic Market
All India

Certifications
ISO GST MSME UDYOG AADHAR

Speicial Purpose Surface Grinder About

Aided by innovative technology and modern equipment, we are able to manufacture and export Special Purpose Grinding Machine. These products are used in different construction operations for grinding jobs. With better workability and effective functioning, these products have become very popular in the global market. Our clients appreciate these products for their delay free service and performance. Special Purpose Grinding Machine is delivered to the clients in a designated time duration owing to our extensive distribution system.

MODELS	AH-1500
Working Surface of Table	1000x500
Max. Table Travel	1000x 500
Magnet Chuck Suitable	1000 x 500
Max. Distance Center of Spindle to table	465
Vertical Down Feed on Hand Wheel	0.01
Micro feed (Elevation)	0.002 / 1 Div.
Wheel Speed	1400 RPM
Wheel Dimension Grinding	300x40x76.2
Spindle Motor 3 Phase	3 HP
Table Speed	5 - 15 m/min
Auto Cross Feed Increment	0.3 - 5.0 mm
Cross Feed on Hand Wheel	0.05mm = 1 Gra - 5.00mm / 1 Rev.
Hydraulic Pump Motor	2HP
Hydraulic Tank Capacity	80 Ltr.

Features

HYDRAULIC MACHINE - is equipped with Imported seals, hard chrome plated rod and honned cylinder.
POWER PACK Equipped with relief value, pressure gauge, suction and return line filters, U.K. collaborated hydraulic pump and works on low pressure. It is situated outside the machine body for better cooling. Machine is provided with stock adjustment stoppers.
The Magnet slide is automatically lubricated through power pack.
All hydraulic connections are connected by Imported copper pipes, leak proof hydraulic fittings and Gates /Markwel hydraulic hose pipes.
After completion of the job, the machine stops automatically
Superior Quality, Accuracy and Prompt deliveries have gained us Reputation.
