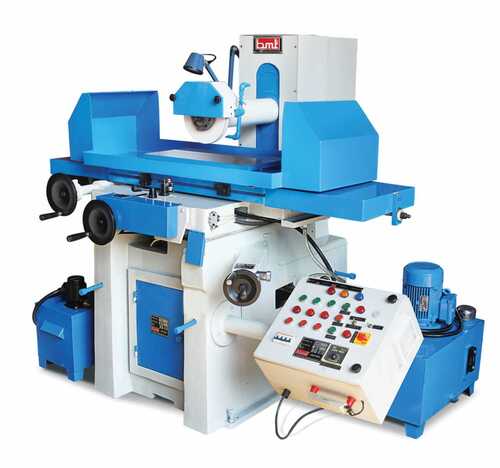

Automatic Surface Grinder

150000.00 - 1500000.00 INR/Unit

Get a Price/Quote

Ask A Question Send Inquiry

Price And Quantity

Payment Terms Cash in Advance (CID), Cash Advance (CA)
Supply Ability 20 Unit Per Month
Delivery Time 1 Week
Sample Available No
Packaging Details WOODEN PACKING
Main Export Market(s) Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
Main Domestic Market All India

We hold prominence as manufacturers of superb quality Hydraulic Surface Grinder, which is available in various dimensions and shapes.

Technical Specifications

MODELS	AH-600
Working Surface of Table	600 x 250
Max. Table Travel	625 x 260
Magnet Chuck Suitable	200 x 600
Max. Distance Center of Spindle to table	400
Vertical Down Feed on Hand Wheel	0.01
Micro feed (Elevation)	0.002 / 1 Div.
Wheel Speed	2800 RPM
Wheel Dimension Grinding	200x19x31.75
Spindle Motor 3 Phase	1.5 HP
Table Speed	5 - 25 m/min
Auto Cross Feed Increment	0.3 - 5.0 mm
Cross Feed on Hand Wheel	0.05mm = 1 Gra - 5.00mm / 1 Rev.
Hydraulic Pump Motor	1 HP
Hydraulic Tank Capacity	75 Ltr.

Features

HYDRAULIC MACHINE - is equipped with Imported seals, hard chrome plated rod and honned cylinder.
POWER PACK Equipped with relief value, pressure gauge, suction and return line filters, U.K. collaborated hydraulic pump and works on low pressure. It is situated outside the machine body for better cooling. Machine is provided with stock adjustment stoppers.
The Magnet slide is automatically lubricated through power pack.
All hydraulic connections are connected by Imported copper pipes, leak proof hydraulic fittings and Gates /Markwel hydraulic hose pipes.
After completion of the job, the machine stops automatically
Superior Quality, Accuracy and Prompt deliveries have gained us Reputation.
