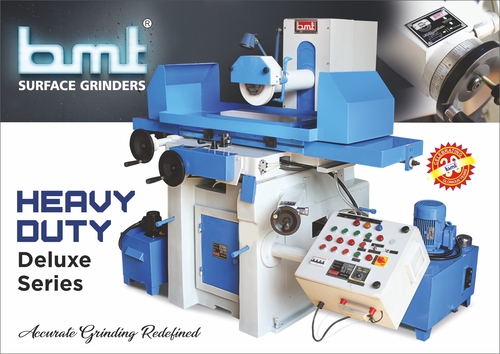

Hydraulic Grinding Machines

150000.00 - 1500000.00 INR/Unit

Get a Price/Quote

Product Details:

Product Type SURFACE Grinding Machine
Material Cast Iron
Type Surface Grinding Machine
Capacity 500 KG Kg/day
Weight (kg) 1800 Kilograms (kg)
Computerized No
Automatic No
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

Price And Quantity

Price Range 150000.00 - 1500000.00 INR/Unit
Minimum Order Quantity 1 Unit

Product Specifications

Capacity 500 KG Kg/day
Power 3 Horsepower (HP)
Product Type SURFACE Grinding Machine
Type Surface Grinding Machine
Grinding Wheel Speed 1400 RPM
Material Cast Iron
Table Slide Way V Type Rail
Table Size 300X750 MM
Automatic No
Color Blue
Weight (kg) 1800 Kilograms (kg)
CNC Or Not Normal
Spindle Speed 1400 RPM
Magnetic Chuck Size 300X750 MM
Dimension(L*W*H) 100X72X78 Inch (in)
Voltage 240-420 Volt (v)
Computerized No
Grinding Wheel Size 300X20X31 75
Control System Manual
Grinding Length 750 MM
Feature Lower Energy Consumption, High Performance, High Efficiency

Trade Information

FOB Port Faridabad
Payment Terms Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 03 Unit Per Month
Delivery Time 1 Months
Packaging Details wooden packing
Main Export Market(s) North America, Africa, Western Europe, South America, Central America, Middle East, Eastern Europe, Australia, Asia
Main Domestic Market All India
Certifications GST CERTIFICATE ISO UDYOG AADHAR CARD

Product Description

Specification

Working Surface of Table	750 x 300
Max. Table Travel	760 x 310
Magnet Chuck Suitable	250 x 750
Max. Distance Center of Spindle to table	400
Vertical Down Feed on Hand Wheel	0.01
Micro feed (Elevation)	0.002 1 Div.
Wheel Speed	1400 RPM
Wheel Dimension Grinding	250x25x 6.2
Spindle Motor 3 Phase	2 HP
Table Speed	8 - 15 m/min
Auto Cross Feed Increment	0.3 - 5.0 mm
Cross Feed on Hand Wheel	0.05mm = 1 Gra - 5.00mm / 1 Rev.
Hydraulic Pump Motor	1.5 HP
Hydraulic Tank Capacity	75 Ltr.
Floor Area Capacity	128" x 68" x 71"
Packing Size ( LxBxH ) in Inches	100" x 60" x 72"
