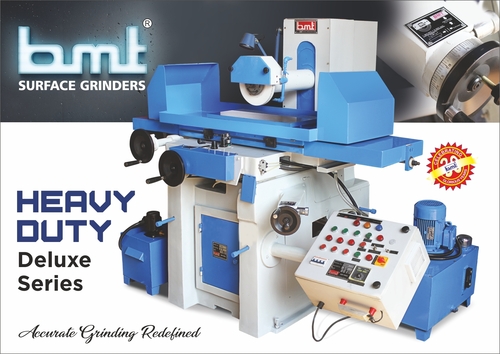

Surface Grinders

Surface Grinders Specification

Product Type
Surface Grinder

General Use
DIE & FIXTURE GRINDING PURPOSE

Material
Cast Iron

Capacity
500 Kg/hr

Weight (kg)
1500 Kilograms (kg)

Computerized
No

Automatic
No

CNC Or Not
Normal

Table Size
300 x 600 mm

Magnetic Chuck Size
250 x 600 mm

Grinding Wheel Size
250x20x76.2 mm

Grinding Wheel Speed
1800 RPM

Grinding Length
600 mm

Floor Space
100x72x72

Fuel Tank Capacity
75 Liter (L)

WorkingSpeed
600x300 mm

Power
2 Horsepower (HP)

Voltage
220-440 Volt (v)

Dimension (L*W*H)
2286 x 1524 x 1828.8 Millimeter (mm)

Feature
Lower Energy Consumption, ECO Friendly, Low Noise, High Efficiency, High Performance

Color
Blue

Warranty
ONE YEAR

Surface Grinders Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
20 Units Per Month

Delivery Time
1 Week

Packaging Details
wooden packing

Main Export Market(s)
Australia, North America, Eastern Europe, Middle East, Central America, South America, Western Europe, Asia, Africa

Main Domestic Market
All India

Certifications
GST ISO MSME UDYOG AADHAR

Surface Grinders About

Backed by the team of diligent and proficient professionals, we manufacture, supply and export Metal Grinding Machines. These products are used in different companies for cutting and grinding of metals. Known for their non-corrosive nature, longer service life and low maintenance, these products have earned the confidence of the clients in the world market. Metal Grinding Machines are packed in special packaging material in order to ascertain their secure delivery.

Technical Specifications:

MODELS	HAD 600
Working Surface of Table	600 x 250
Max. Table Travel	625 x 260
Magnet Chuck Suitable	200 x 600
Max. Distance Center of Spindle to table	400
Vertical Down Feed on Hand Wheel	0.01
Micro feed (Elevation)	0.002 / 1 Div.
Wheel Speed	2800 RPM
Wheel Dimension Grinding	250x19x31.75
Spindle Motor 3 Phase	2 HP
Table Speed	5 - 25 m/min
Auto Cross Feed Increment	0.3 - 5.0 mm
Cross Feed on Hand Wheel	0.05mm = 1 Gra - 5.00mm / 1 Rev.
Hydraulic Pump Motor	1 HP
Hydraulic Tank Capacity	75 Ltr.

Features

HYDRAULIC MACHINE - is equipped with Imported seals, hard chrome plated rod and honned cylinder.
POWER PACK Equipped with relief value, pressure gauge, suction and return line filters, U.K. collaborated hydraulic pump and works on low pressure. It is situated outside the machine body for better cooling. Machine is provided with stock adjustment stoppers.
The Magnet slide is automatically lubricated through power pack.
All hydraulic connections are connected by Imported copper pipes, leak proof hydraulic fittings and Gates /Markwel hydraulic hose pipes.
After completion of the job, the machine stops automatically
Superior Quality, Accuracy and Prompt deliveries have gained us Reputation.
