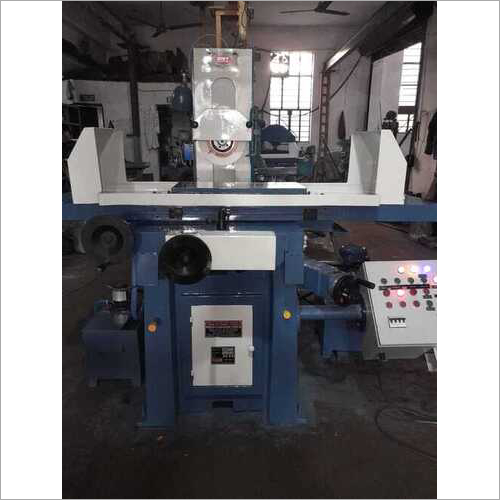

Precision Surface Grinder

Precision Surface Grinder

Product Details:

  • Product Type Surface Grinder
  • Material Cast Iron
  • Weight (kg) 50-100 Kilograms (kg)
  • Computerized No
  • Automatic No
  • CNC Or Not Normal
  • Control System Manual
  • Supply Ability : 20 Unit Per Month
150000.00 - 1500000.00 INR/Unit
X

Price And Quantity

  • 150000.00 - 1500000.00 INR/Unit
  • 1 Unit

Product Specifications

  • Normal
  • No
  • Manual
  • Cast Iron
  • 50-100 Kilograms (kg)
  • Surface Grinder
  • No
  • 150-220 Volt (v)
  • ECO Friendly

Trade Information

  • Cash in Advance (CID), Cash Advance (CA)
  • 20 Unit Per Month
  • 1 Week
  • No
  • wooden packing
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
  • All India

Product Description

We have obtained the market acumen and experience to manufacture and export Precision Surface Grinder. Premier quality raw materials have been acquired from the prime sellers of the market for making these products. These products are widely used for different grinding operations and jobs. Tested by our team of diligent quality analyzers, these products provide perfect workability and functionality. Precision Surface Grinder is available with us in different specifications in accordance to the requirements of the clients.

MODELS

AH-750

Working Surface of Table

750 x 300

Max. Table Travel

760 x 310

Magnet Chuck Suitable

250 x 750

Max. Distance Center of Spindle to table

400

Vertical Down Feed on Hand Wheel

0.01

Micro feed (Elevation)

0.002 / 1 Div.

Wheel Speed

2800 RPM

Wheel Dimension Grinding

250x25x 6.2

Spindle Motor 3 Phase

2 HP

Table Speed

5 - 25 m/min

Auto Cross Feed Increment

0.3 - 5.0 mm

Cross Feed on Hand Wheel

0.05mm = 1 Gra - 5.00mm / 1 Rev.

Hydraulic Pump Motor

1.5 HP

Hydraulic Tank Capacity

75 Ltr.

Features

  • HYDRAULIC MACHINE - is equipped with Imported seals, hard chrome plated rod and honed cylinder.
  • POWER PACK Equipped with relief value, pressure gauge, suction and return line filters, U.K. collaborated hydraulic pump and works on low pressure. It is situated outside the machine body for better cooling. Machine is provided with stock adjustment stoppers.
  • The Magnet slide is automatically lubricated through power pack.
  • All hydraulic connections are connected by Imported copper pipes, leak proof hydraulic fittings and Gates /Markwel hydraulic hose pipes.
  • After completion of the job, the machine stops automatically
  • Superior Quality, Accuracy and Prompt deliveries have gained us Reputation.
