Surface Grinders Reciprocate

Surface Grinders Reciprocate Specification

Product Type
Surface Grinder

General Use
DIE & FIXTURE GRINDING PURPOSE

Material
Cast Iron

Capacity
500 Kg/day

Weight (kg)
1600 Kilograms (kg)

Computerized
No

Automatic
Yes

CNC Or Not
Normal

Table Size
300 x 600 mm

Magnetic Chuck Size
250 x 600 mm

Grinding Wheel Size
200x20x31.75 mm

Grinding Wheel Speed
1800 RPM

Grinding Length
600 mm

Floor Space
90x60x72

Fuel Tank Capacity
75 Liter (L)

WorkingSpeed
250X600 MM

Spindle Speed
1800 RPM

Power
2 Horsepower (HP)

Voltage
220-440 Volt (v)

Dimension (L*W*H)
2286 x 1524 x 1828.8 Millimeter (mm)

Feature
Lower Energy Consumption, ECO Friendly, High Performance, Low Noise, High Efficiency

Color
Blue

Warranty
ONE YEAR

Surface Grinders Reciprocate Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID), Cheque, Cash Advance (CA)

Supply Ability
20 Units Per Month

Delivery Time
1 Week

Packaging Details
wooden packing

Main Export Market(s)
Australia, North America, Eastern Europe, Middle East, Central America, South America, Western Europe, Asia, Africa

Main Domestic Market
All India

Certifications
GST ISO MSME CERTIFICATE UDYOG AADHAR

Surface Grinders Reciprocate About

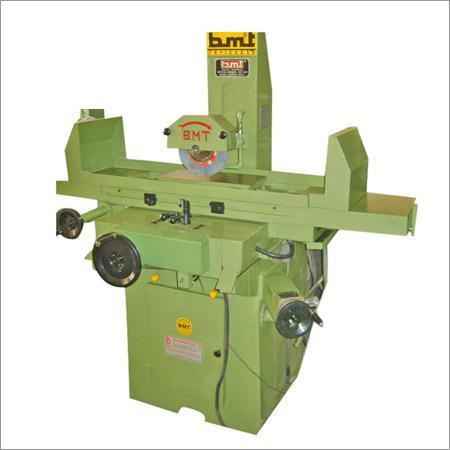

Reciprocating Surface Grinding Machine

We manufacture highly durable Reciprocating Surface Grinders, that is used widely in all sorts of grinding purposes. This model bears enormous wheel speed, that helps in rigorous grinding giving out highly reliable outcomes. It's integrated mechanism is upgraded by the latest innovations of technology. We provide the unit at industry leading rates.

MODELS	AH 600
Working Surface of Table	600 x 250
Max. Table Travel	625 x 260
Magnet Chuck Suitable	200 x 600
Max. Distance Center of Spindle to table	400
Vertical Down Feed on Hand Wheel	0.01
Micro feed (Elevation)	0.002 / 1 Div.
Wheel Speed	2800 RPM
Wheel Dimension Grinding	250x19x31.75
Spindle Motor 3 Phase	2 HP
Table Speed	5 - 25 m/min
Auto Cross Feed Increment	0.3 - 5.0 mm
Cross Feed on Hand Wheel	0.05mm = 1 Gra - 5.00mm / 1 Rev.
Hydraulic Pump Motor	1 HP
Hydraulic Tank Capacity	75 Ltr.

Features

HYDRAULIC MACHINE - is equipped with Imported seals, hard chrome plated rod and honned cylinder.
POWER PACK Equipped with relief value, pressure gauge, suction and return line filters, U.K. collaborated hydraulic pump and works on low pressure. It is situated outside the machine body for better cooling. Machine is provided with stock adjustment stoppers.
The Magnet slide is automatically lubricated through power pack.
All hydraulic connections are connected by Imported copper pipes, leak proof hydraulic fittings and Gates /Markwel hydraulic hose pipes.
After completion of the job, the machine stops automatically
Superior Quality, Accuracy and Prompt deliveries have gained us Reputation.
