Tool Room Grinders

150000.00 - 1500000.00 INR/Unit

Get a Price/Quote

Product Details:

Product Type MANUAL SURFACE GRINDER
Material Cast Iron
Capacity 100 Kg/hr
Weight (kg) 1000 Kilograms (kg)
Computerized Yes
Automatic No
CNC Or Not Normal
Supply Ability : 20 Unit Per Month
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Price And Quantity

Minimum Order Quantity 1 Unit
Price Range 150000.00 - 1500000.00 INR/Unit

Product Specifications

Material Cast Iron
Grinding Wheel Speed 2800 RPM
Feature Lower Energy Consumption, High Efficiency, High Performance
Dimension(L*W*H) 48" X48" X67" HEIGHT Inch (in)
Table Size 225x400 mm
Grinding Length 300 mm
Weight (kg) 1000 Kilograms (kg)
Table Slide Way V Type Rail
Capacity 100 Kg/hr
Computerized Yes
Power 1 Horsepower (HP)
Color Blue
Warranty one year
Control System Manual
WorkingSpeed 200X350 MM
Product Type MANUAL SURFACE GRINDER
Voltage 420 Volt (v)
CNC Or Not Normal
Automatic No
Fuel Tank Capacity 40 Liter (L)
Spindle Speed 2800 RPM

Trade Information

Supply Ability 20 Unit Per Month
Delivery Time 1 Week
Packaging Details wooden packing
Main Export Market(s) Asia
Main Domestic Market All India
Certifications ISO CERTIFICATE GST CERTIFICATE AND UDYOG AADHAR

Product Description

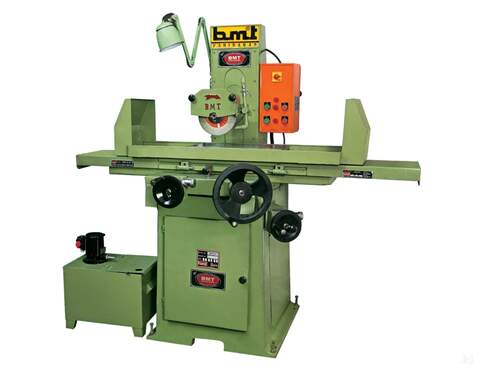

Tool Room Grinders

We are Manufacturer & Supplier of Tool Room Grinder at affordable prices.

Technical Specifications

MODELS	M-914-OT
Max. Table Travel	225 X 350
Magnet Chuck Suitable	200 X 300
Max. Distance Center of Spindle to table	340
Vertical Down Feed on Hand Wheel	0.01
Micro feed (Elevation)	0.002 1 Div
Wheel Speed	2800 RPM
Wheel Dimension Grinding	200x13x31 75
Spindle Motor 3 Phase	1 HP

Features

HEAVY DUTY robust base structure and slides with excellent rigidity and capable to handle
COLUMN & VERTICAL SLIDE: Both Guide ways are ground finished for high rigidity & z-axis Accuracy.
OIL LUBRICATION: Magnet slide is immersed in oil bath and all other parts lubricated with Centralized lubrication pump.
WHEEL HEAD: Spindle is mounted on a rigidly constructed spindle housing which runs on preloaded super precision anti friction Imported bearings which are grease packed for long life. Direct drive by flange mounted motor eliminate the vibrations.
MICROFEED: The vertical feed movements are equipped with MICROFEED up to 0.002mm.
ELECTRIC CONTROL PANEL having L&T/TC Contractors, AG I Rotary switch & soft touch push Buttons.
