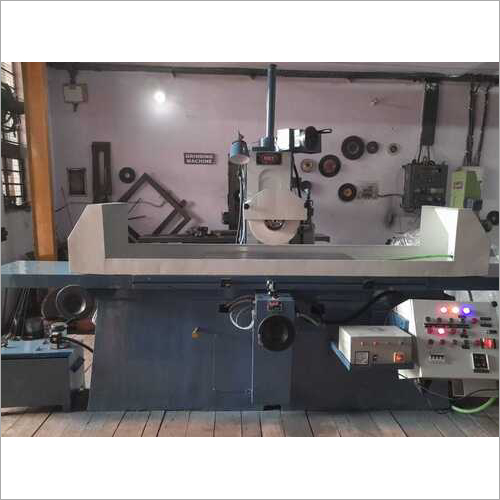

Hydraulic Surface Grinder Upper Feed

Hydraulic Surface Grinder Upper Feed Specification

Product Type
HYDRAULIC SURFACE GRINDER

General Use
DIE & FIXTURE GRINDING PURPOSE

Material
Cast Iron

Type
Surface Grinding Machine

Capacity
500 Kg/hr

Weight (kg)
2200 Kilograms (kg)

Computerized
No

Automatic
Yes

CNC Or Not
Normal

Table Size
1000X300

Magnetic Chuck Size
1000X300

Grinding Wheel Size
250x20x76.2 mm

Grinding Wheel Speed
1400 RPM

Grinding Length
1000 MM

Floor Space
150X78X72

Fuel Tank Capacity
75 Liter (L)

WorkingSpeed
1000X300

Spindle Speed
1400 RPM

Power
3 Horsepower (HP)

Voltage
440-220 Volt (v)

Dimension (L*W*H)
3683 x 2133.6 x 1828.8 Millimeter (mm)

Color
Blue

Hydraulic Surface Grinder Upper Feed Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Supply Ability
20 Units Per Month

Delivery Time
1 Week

Packaging Details
wooden packing

Main Export Market(s)
Australia, North America, Eastern Europe, Middle East, Central America, South America, Western Europe, Asia, Africa

Main Domestic Market
All India

Certifications
GST ISO MSME UDYOG ADHAR

About Hydraulic Surface Grinder Upper Feed

We are Supplying machines to different parts ofIndia. Raipur Rudrapur Belagavi Navi Mumbai , Firozabad Jamshedpur Rajahmundry Bokaro Kolkata, Kondapur Indore Pithampur in the Delhi reason we have alsosupplied to Noida cannot say um Kanpur. Rajkot could Peeniya in Bangalore, citySurat We are supplied lot of machines inMAHISANA also Ahmedabad Gandhinagar.

And Badodara, our machines are working successfully in Chennai. Husband HaridwarFaridabad Mathura Gurugram but the Coimbatore Pune Nagpur Kanpur Baddi ,Faridabad , Pune solan, Coimbatore ,Chennai , Hosur Navi Mumbai Raipur ,Vijaywada Firozabad, Bhilai , Delhi , Noida , Kannur , Kharagpur, Tirupur ,Salem , Sivakasi , Rajkot , Kochi Ahmedabad Gandhinagar , Jamnagar , Ludhiana Mumbai , Thrissur Gajrula,Sri City , Nashik , Raipur , Vijaywada , Mumbai , Panipat , Sonipat, AmbalaCantt

Upper Feed Surface Grinder
Small size accurate surface grinder applicable for grinding punches and other grinding applications.

Technical Specifications:

MODELS	AH 1000
Working Surface Of Table	1000 X 300
Max. Table Travel	1000 X 300
Magnet Chuck Suitable	900 X 300MM
Max. Distance Center of Spindle to table	490
Vertical Down Feed on Hand Wheel	0.01MM
Micro feed (Elevation)	0.02/1 Div
Wheel Speed	1400 RPM
Wheel Dimension Grinding	250 X25 X 76.2
Spindle Motor 3 Phase	3 HP
