Wide Bed Surface Grinding Machine

150000.00 - 1500000.00 INR/Unit

Get a Price/Quote

Product Details:

Product Type Grinding Machine
General Use GRINDING PURPOSE
Material Cast Iron
Capacity 500 Kg/day
Weight (kg) 2600 Kilograms (kg)
Computerized Yes
Automatic Yes
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

Price And Quantity

Price Range 150000.00 - 1500000.00 INR/Unit
Minimum Order Quantity 1 Unit

Product Specifications

Spindle Speed 1400 RPM
Computerized Yes
Warranty ONE YEAR
WorkingSpeed 1400
Fuel Tank Capacity 80 Liter (L)
Voltage 220 - 440 Volt (v)
Weight (kg) 2600 Kilograms (kg)
Magnetic Chuck Size 1000X500
Grinding Wheel Speed 1400 RPM
Color Blue
Power 3 Horsepower (HP)
Table Size 1000X500 MM
Feature High Performance, Lower Energy Consumption, ECO Friendly, High Efficiency, Low Noise
Control System Manual
Capacity 500 Kg/day
Dimension(L*W*H) 132X80X72 Micromete (micron)
General Use GRINDING PURPOSE
Material Cast Iron
Product Type Grinding Machine
Grinding Length 1000 MM
Automatic Yes
CNC Or Not Normal
Grinding Wheel Size 300X40X76.2 MM
Floor Space 150X78X72

Trade Information

Payment Terms Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 20 Unit Per Month
Delivery Time 1 Week
Packaging Details wooden packing
Main Export Market(s) Asia, Australia, South America, Eastern Europe, Western Europe, Middle East, Central America, North America, Africa
Main Domestic Market All India
Certifications GST ISO MSME EDYOG ADHAR

Product Description

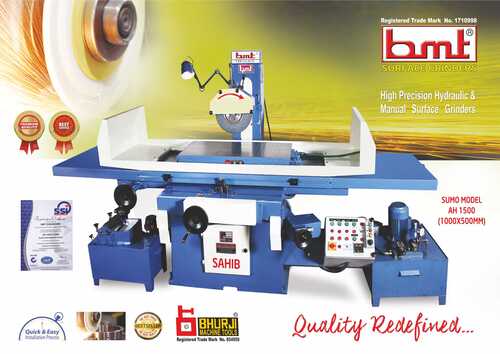

HYDRAULIC SURFACE GRINDER MACHINE MODEL AH 1500

WORKING OF SURFACE AREA 1000 X500 MM

MAX. TABLE TRAVEL 1010 X510 MM

MAGNET CHUCK 1000 X 500 MM

MAX. DISTANCE CENTRE OF SPINDEL TO TABLE 465 MM

VERTICAL DOWN FEED ON HAND WHEEL 0.01 MM

MICROFEED 0.02/1 DIV

WHEEL DIMENSION 350 X 40 X 127

SPINDLE MOTOR 3 HP

TABLE SPEED 8 -15 M/MIN

HYDRAULIC PUMP MOTOR 2 HP

AUTO CROSS FEED 0.1 - 1.0 MM

TANK CAPACITY 80 LTR
